Elevator Rolling Guide Shoe

Introduction

In modern elevator systems, elevator guide shoes play a crucial role in ensuring smooth vertical movement. Roller guides represent a significant technological advancement, particularly suitable for modern high-rise buildings, energy-efficient elevator systems,sightseeing elevators,high-speed elevators. Despite high initial costs, their excellent performance in reducing friction, noise control, and maintenance requirements makes them the preferred choice for new installations and modern projects.

Fundamental benefits of rolling guide shoe:

1. Reduced Friction, Enhanced Durability
Roller guides utilize rolling contact instead of sliding contact, decreasing friction by up to 80% compared to traditional sliding guides. This not only minimizes wear and tear on elevator rails but also extends the lifespan of the entire system, reducing long-term maintenance costs.

2.Noise Performance
Laboratory tests show roller guides operate at 45-52 dB, versus 60-68 dB for sliding systems. The rolling contact mechanism:
Minimizes vibration transmission
Reduces noise propagation through building structures
Enhances passenger comfort, especially in high-speed elevators (>2.5 m/s)

3.Performance at High Speeds
For elevators exceeding 2.0 m/s, roller guides provide distinct advantages:
Stable operation up to 10 m/s (sliding guides limited to 4 m/s)
Reduced “stick-slip” phenomenon during acceleration/deceleration
Better dynamic response to building sway in tall structures

4.Maintenance Requirements
Roller guides demonstrate superior maintenance characteristics:
No periodic lubrication needed (vs. quarterly lubrication for sliding types)
Bearing replacement intervals of 5-7 years (compared to annual shoe replacement)
Simplified inspection procedures using wear indicators

5. Cleaner Operation, No Oil Splatter
Unlike sliding guides, which require frequent lubrication and often suffer from oil splatter (a common issue in high-speed elevators), roller guides operate smoothly without excessive lubricants. This makes them the preferred choice for glass-walled observation elevators, where oil stains would compromise aesthetics and visibility.

6. Energy Efficiency
With significantly lower friction resistance, roller guides reduce the power consumption of elevator traction systems, contributing to greener building operations.
Applications & Industry Adoption
Roller guides are increasingly adopted in:
Observation/Luxury Elevators (no oil marks on glass cabins)
High-Speed Elevators (reduced heat generation)
Heavy-Duty Industrial Elevators (higher load capacity)

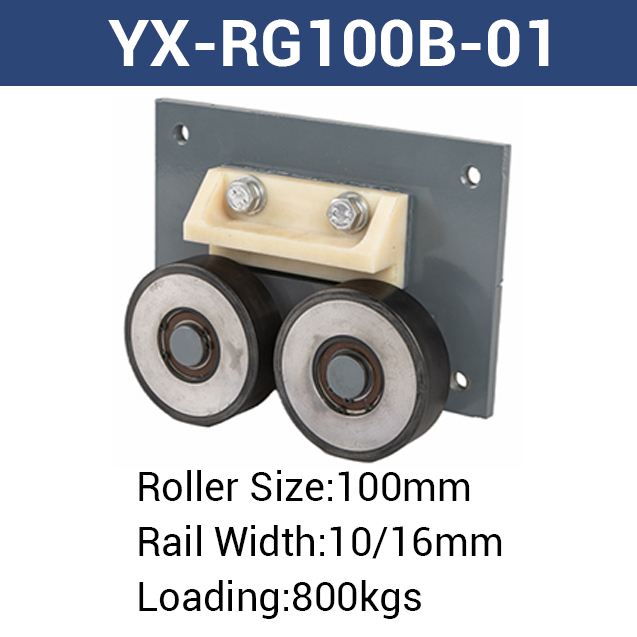

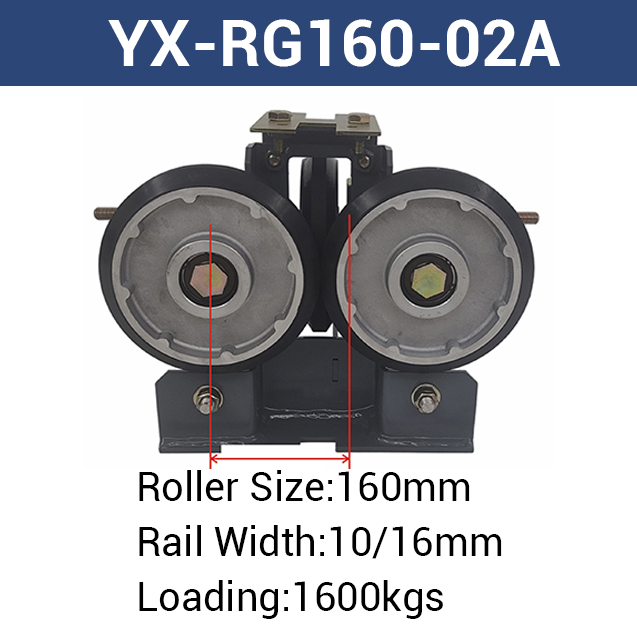

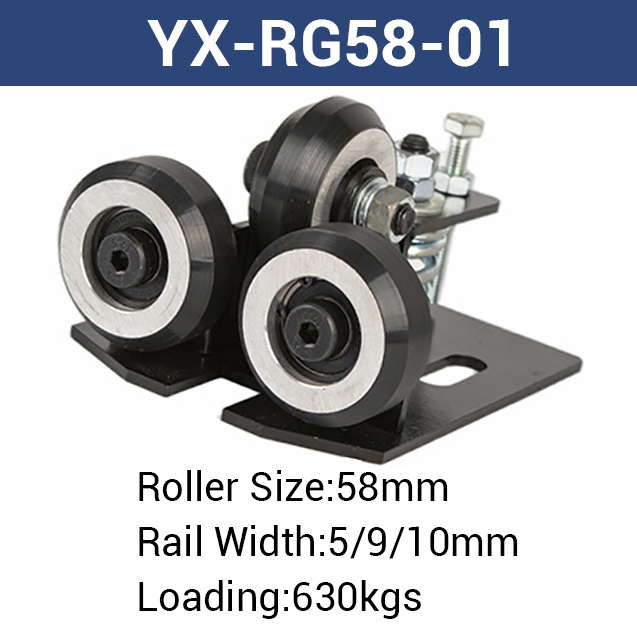

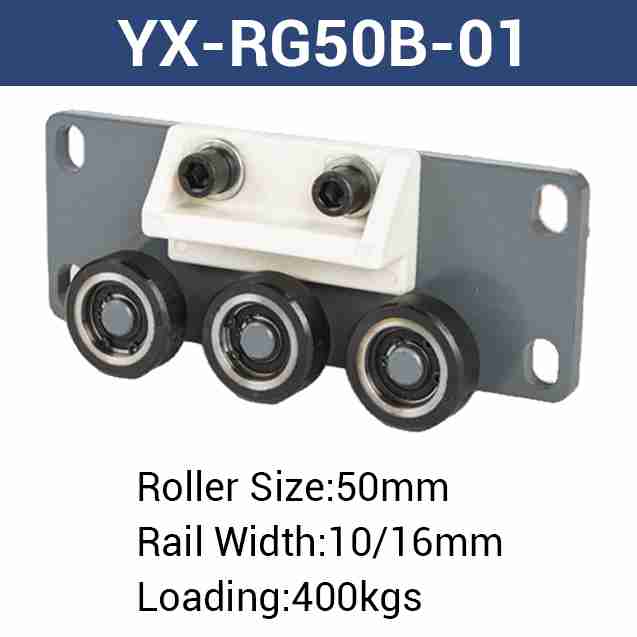

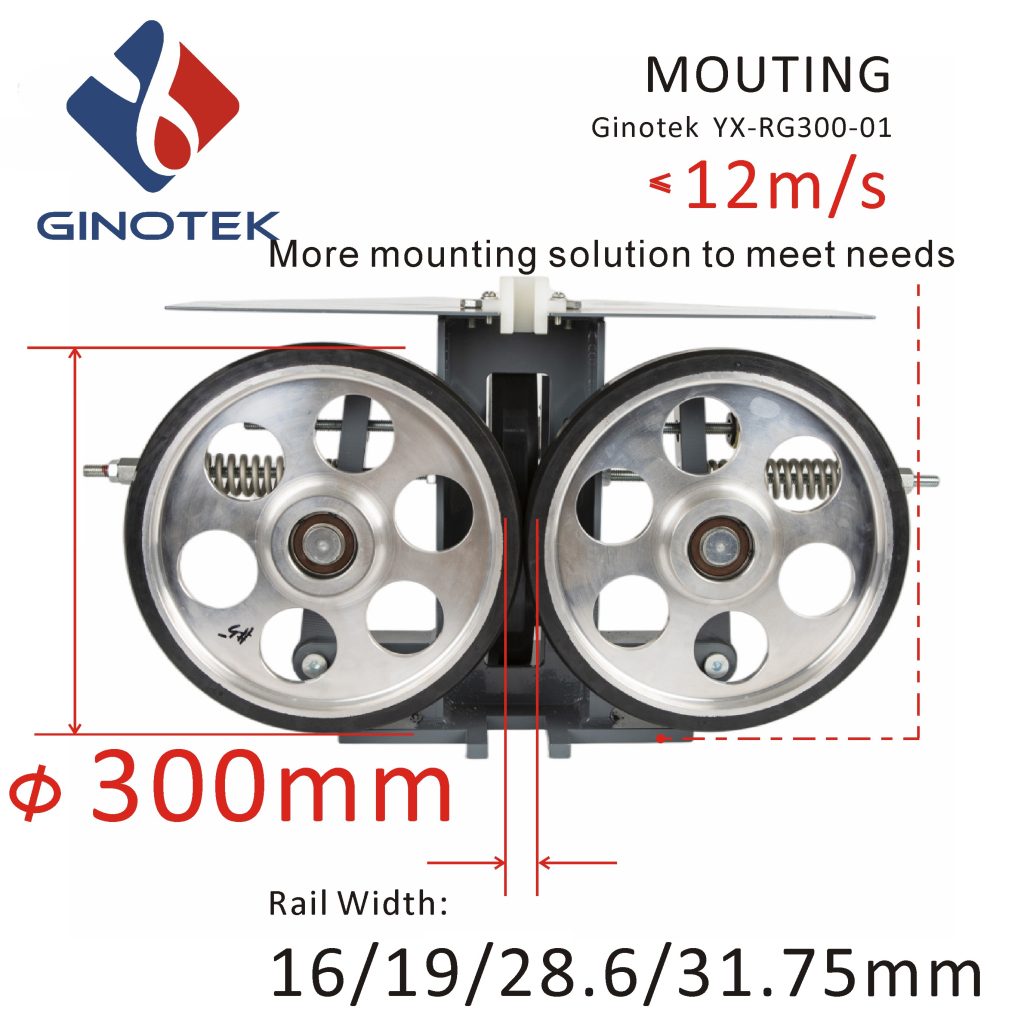

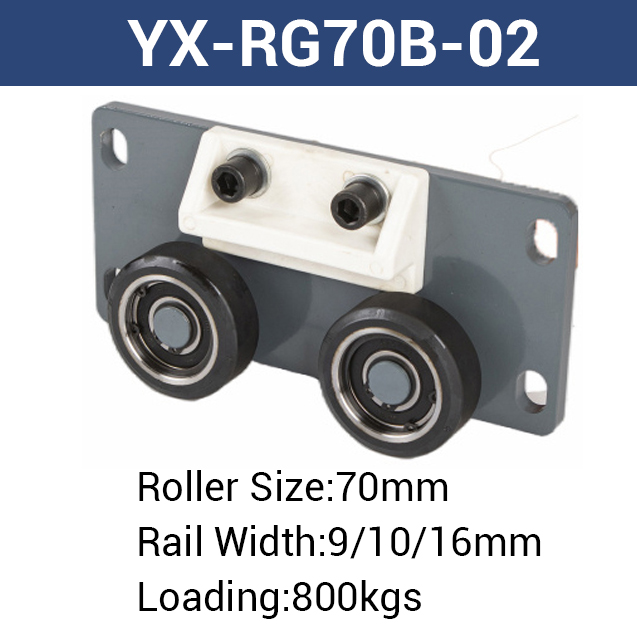

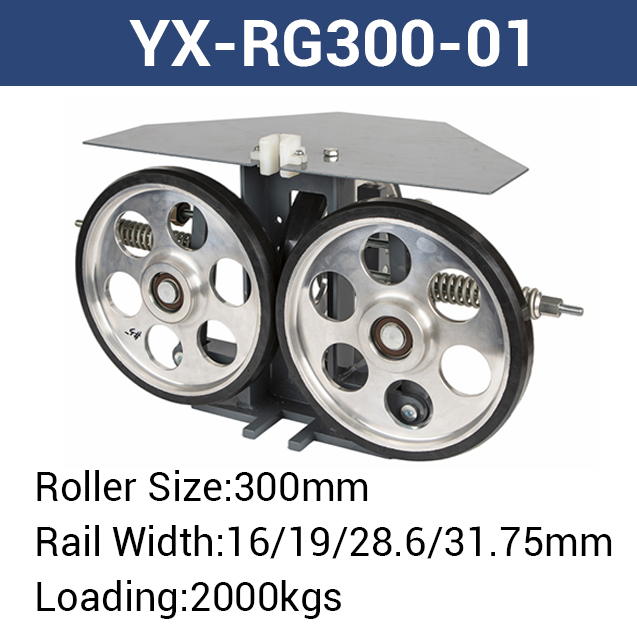

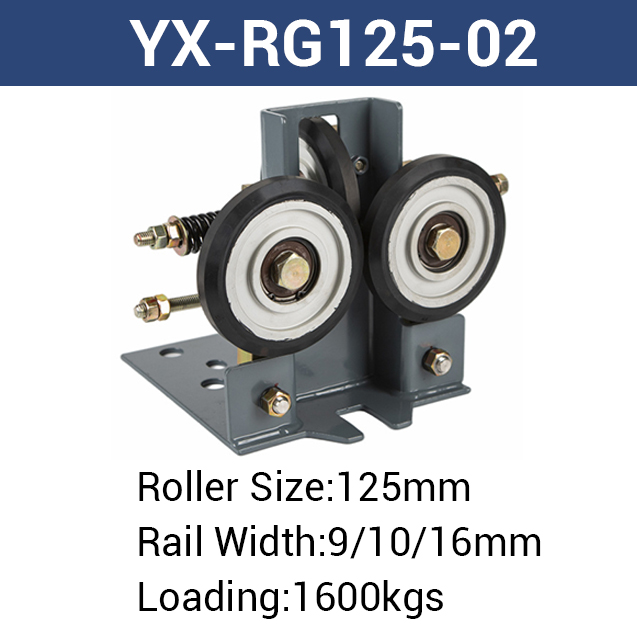

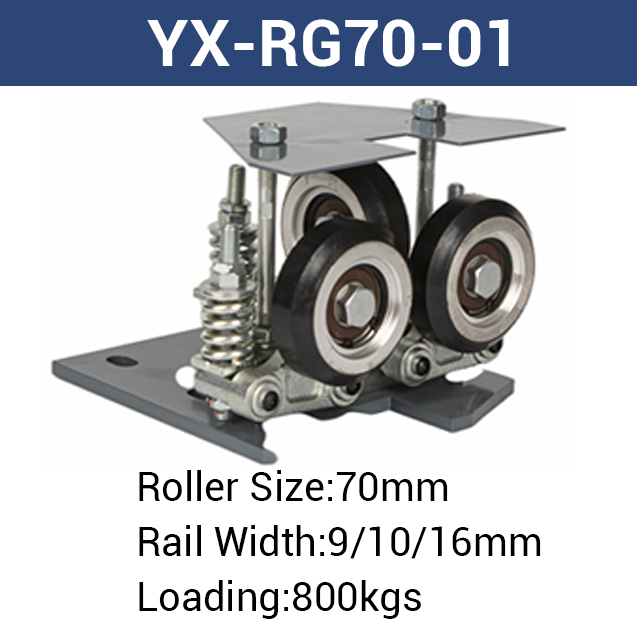

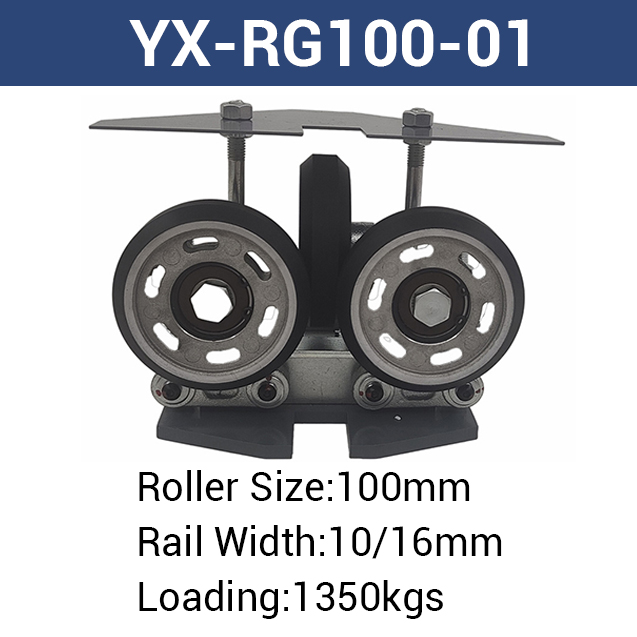

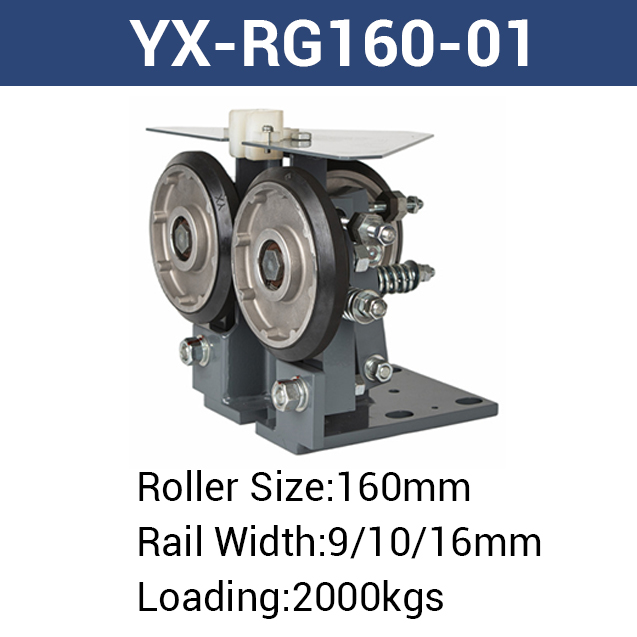

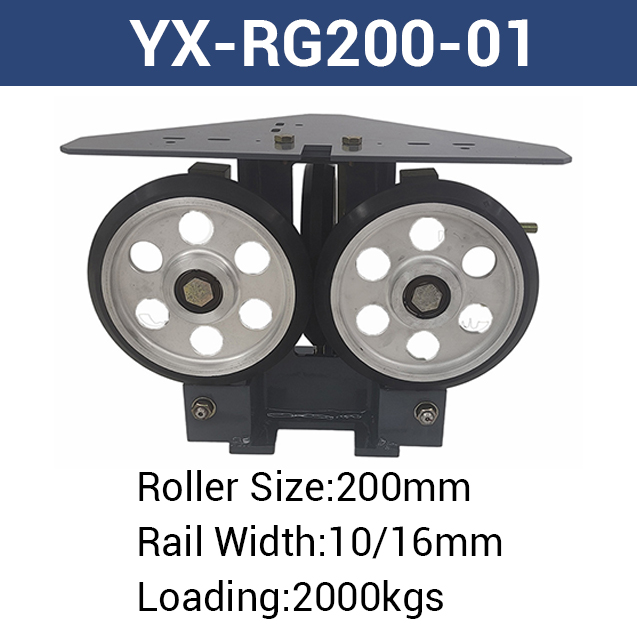

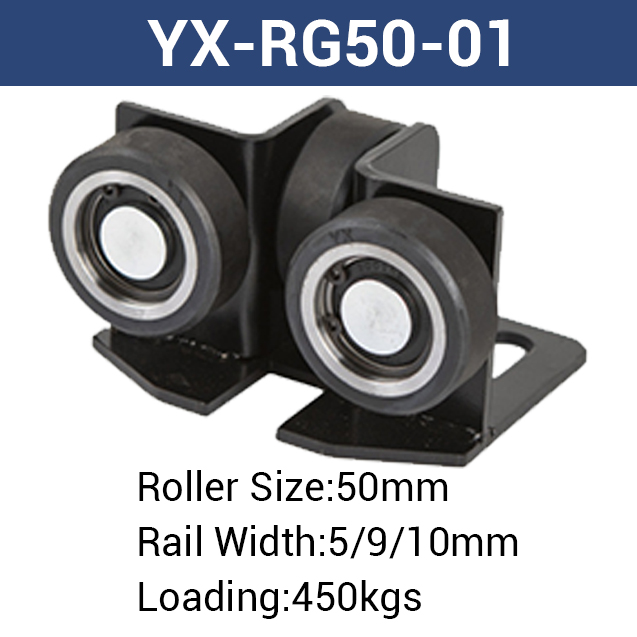

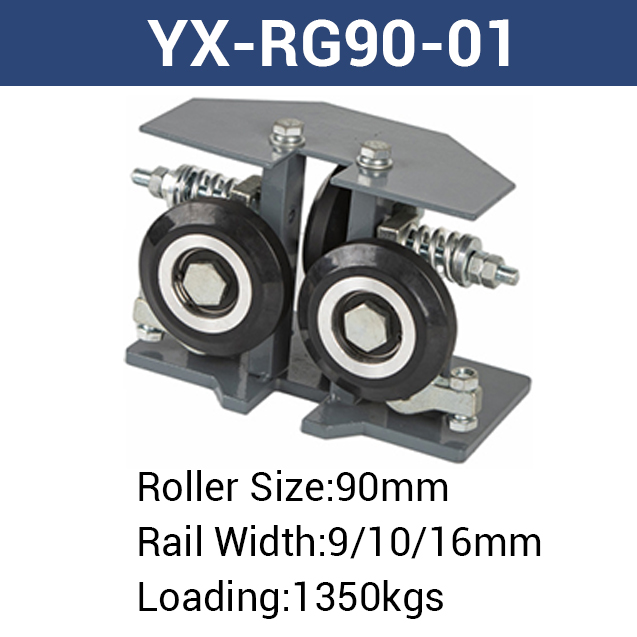

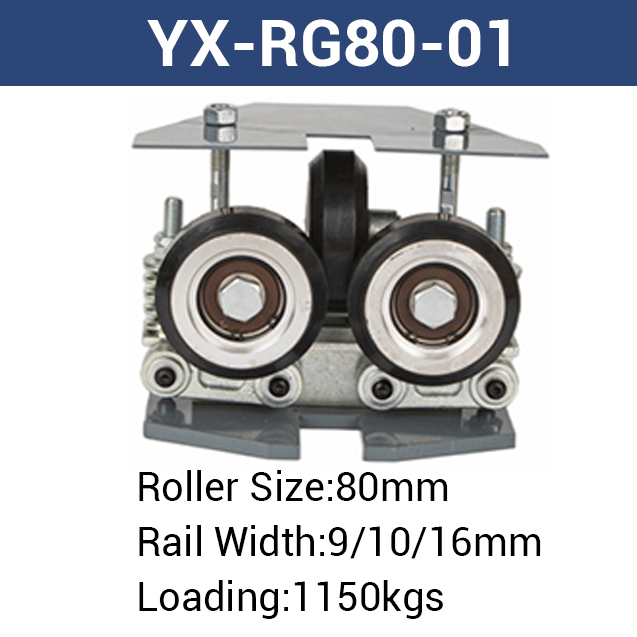

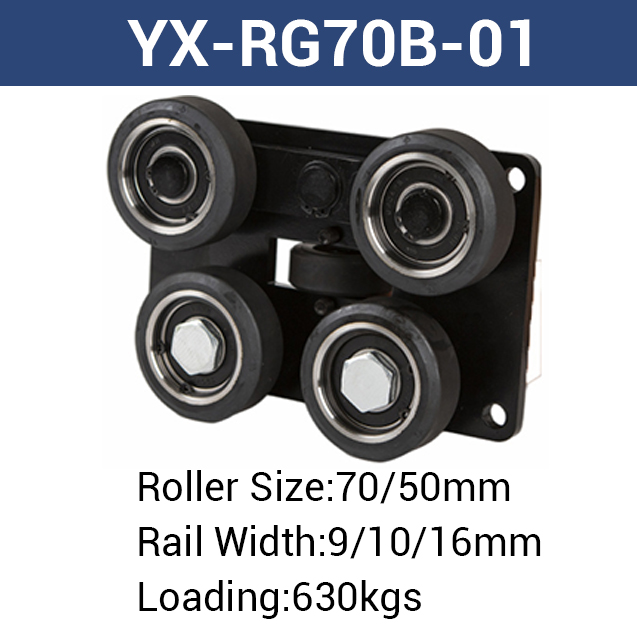

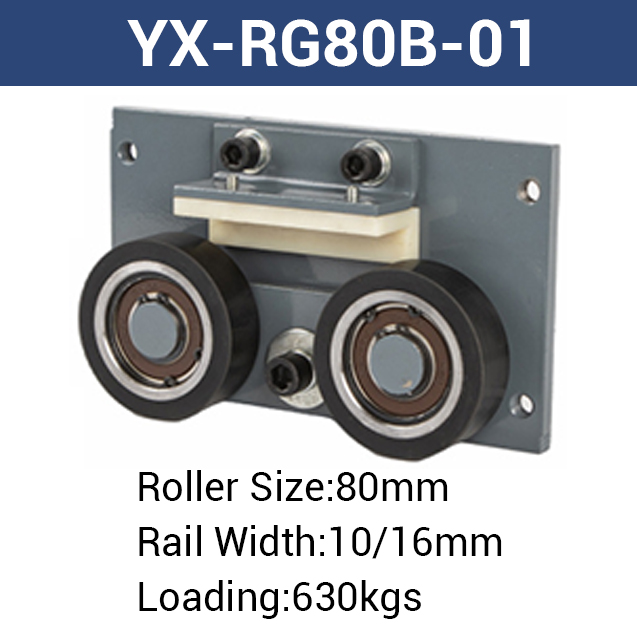

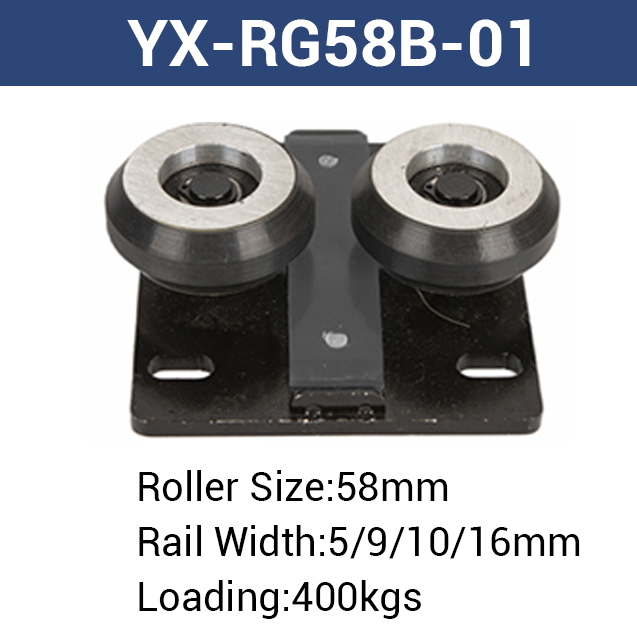

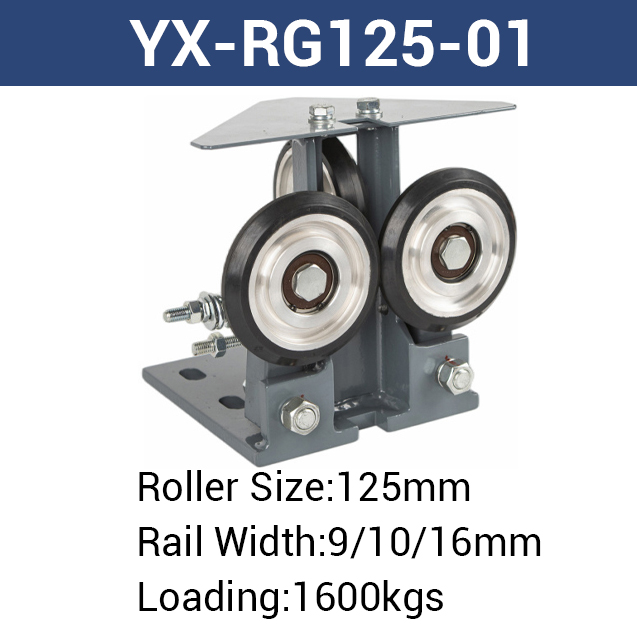

Ginotek Elevator Guide Shoe -Rolling Type

Name: Elevator Rolling Guide Shoe - Auto Parts - Ginotek
SKU: Ginotek Elevator Guide Shoe (rolling typle)

Click here to understand more about Ginotek Guide Shoe

More names for Elevator Guide Shoe

Elevator Guide Shoes Are Divided Into Elevator Rolling Guide Shoes And Elevator Sliding Guide Shoes

Elevator Guide Shoe Is Called: ‌Elevator Guide Rail Shoe, Elevator Rail Guide Shoes, Lift Guide Shoe‌, Guide Shoe In Elevator,Villa Guide Shoe,‌Elevator Car Guide Shoe (Elevator Main Guide Shoe, Counterweight Guide Shoe), Rail Shoe‌ , Rack Shoe

Elevator Rolling Guide Shoes Is Called: Elevator Roller Guide Shoe, Roller Guides

Elevator Sliding Guide Shoes Is Called:Elevator Slide Guide Shoes, Shoe Bushing‌
